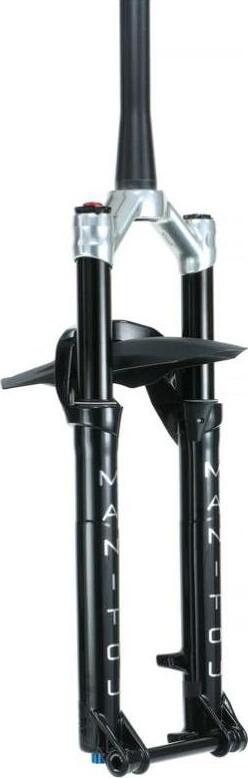

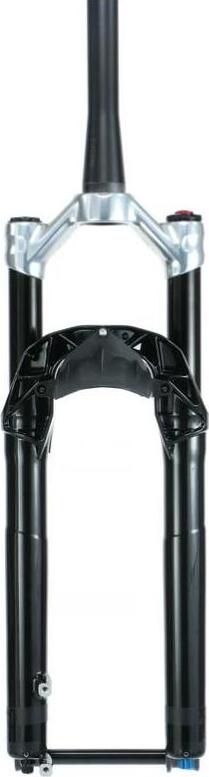

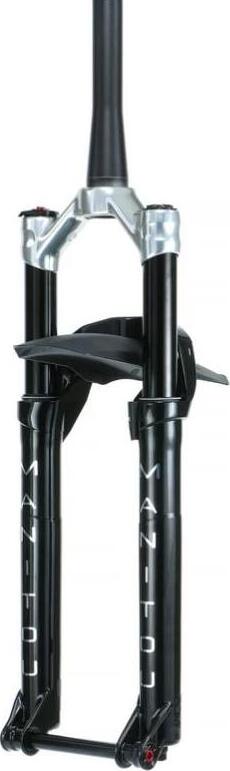

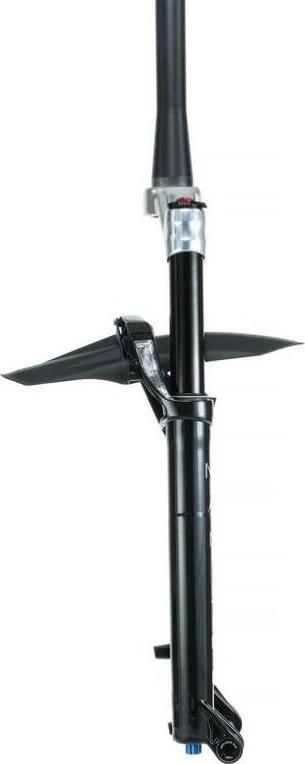

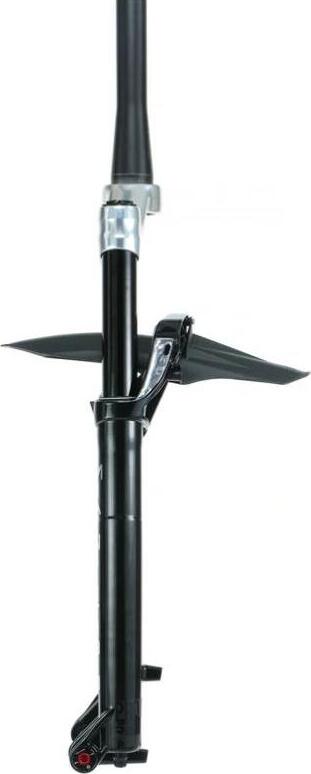

Manitou R7 Pro

XC air spring fork
Promotion %
-30%
Promotion
1 030,00
725,00
44 mm
51 mm
ks
 Share
Why should you buy this product from us?
  Installment purchase
Manitou was founded more than 20 years ago to produce the most technically advanced products imaginable. It now offers suspension to overcome even the most difficult terrain.

Manitou R7 Pro- Writable in a few words that can perfectly describe it. It is a fork that loves to please the rider with its skills, technologies and above all reliability.

Key features:

  • Damper - VTT Pro: Rock-solid lockout without compromise. Thanks to independent shim stacks you no longer need to lose sensitivity in your open positions to achieve a true lock-out. This means you can still crank climbs without bobbing and blast through rock gardens without shattering your forearms on the same ride.
  • Air Spring - Dorado Air w/ IVA: As the name suggests this air spring is derived from our legendary Dorado DH fork. Dorado air features a unique balancing valve that equalizes pressure between the positive and negative air chambers during the air fill process. This provides the fork with a consistent feel without any flat or dead spots in the stroke. To manage volume we have included our Incremental Volume Adjust (IVA). The IVA is a self-contained volume reduction system that allows greater ramp-up change than conventional adjustment systems without the need for additional parts.
Specification:

  • Wheel Size: 27.5" 27.5+/29"
  • Weight: 1625 g (27.5") 1648 g (27.5+/29")
  • Offset: 37/44 OS (27.5") 44/51 OS (27.5+/29")
  • Ride Height: 471-511 mm (27.5") 485-525 mm (27.5+/29")
  • Travel: 80-120 mm Internally adjustable in 10 mm increments
  • Spring: Dorado Air w/ IVA
  • Compression Damping: VTT Pro
  • Rebound Damping: Half Cartridge adjustable TPC
  • Adjustments: Air, Rebound, 3 position Compression (Open, Trail, Lock) with Open Mode Adjust, IVA position
  • Steerer: 1.5" Tapered
  • Crown: Forged Aluminum, Hollow Bore Matte Black
  • Leg Diameter: 32 mm
  • Leg Material: 7000- Series Butted Wall Aluminum
  • Brake: Post Mount 160 mm (203 mm Max)
  • Axle: 15 mm x110 mm Hexlock
  • Max Tire Size: 68 mm (27.5") 77 mm (27.5+), 68 mm (29)

  • Options: QR15, Remote Lockout
  • Mudguard is part of the package.

Travel80-120 mm
