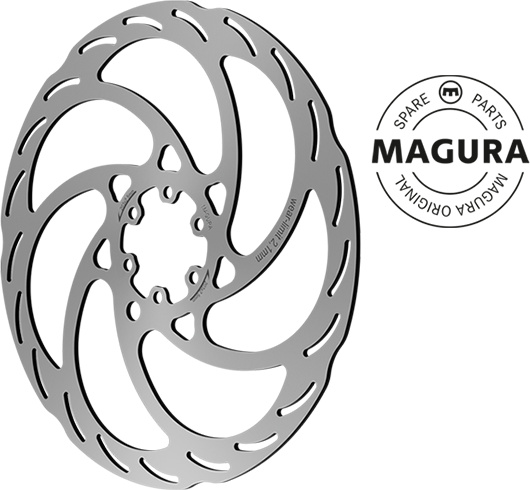

MAGURA Brake rotor MDR-S 2,5mm

Magura MDR-S 2.5 Disc Brake Rotor - 6-Bolt - 203mm

Thanks to its greater thickness of 2.5mm and the increased amount of metal, this brake rotor heats up significantly less than its 2.0mm counterparts, staying in the ideal braking zone longer and offering consistent, easily controllable performance! It also provides the smoothest ride you’ve ever experienced. No vibrations or noise!

• For the MAGURA MDR-S rotor, the time required for bedding in the pads (bed-in process) has been reduced.
• The larger and fuller braking surface has improved the modulation of braking power.
• The increased thickness of the rotor allows it to handle high thermal loads for longer periods.
• Designed for 6-bolt mounting.
• The MAGURA MDR-S rotor is treated with a corrosion-resistant surface coating.
• This rotor is compatible only with the MAGURA Gustav PRO brake!

Package contents:

• 1x MAGURA MDR-S brake rotor
• 6x T25 screws for hub attachment
• Installation manual

Technical specifications:

• Original rotor thickness = 2.5mm
• Minimum rotor thickness = 2.1mm
• Rotor attachment on hub = 6-bolt (IS)

Weights:
All the weights listed below are without the 6 steel bolts for hub attachment, which are included in the rotor package. These 6 bolts weigh an additional 15g.

• 180mm - 219g
• 203mm - 266g

Note:
The maximum tightening torque for the screws used to attach the rotor to the hub is 4Nm – do not exceed the maximum tightening torque!
