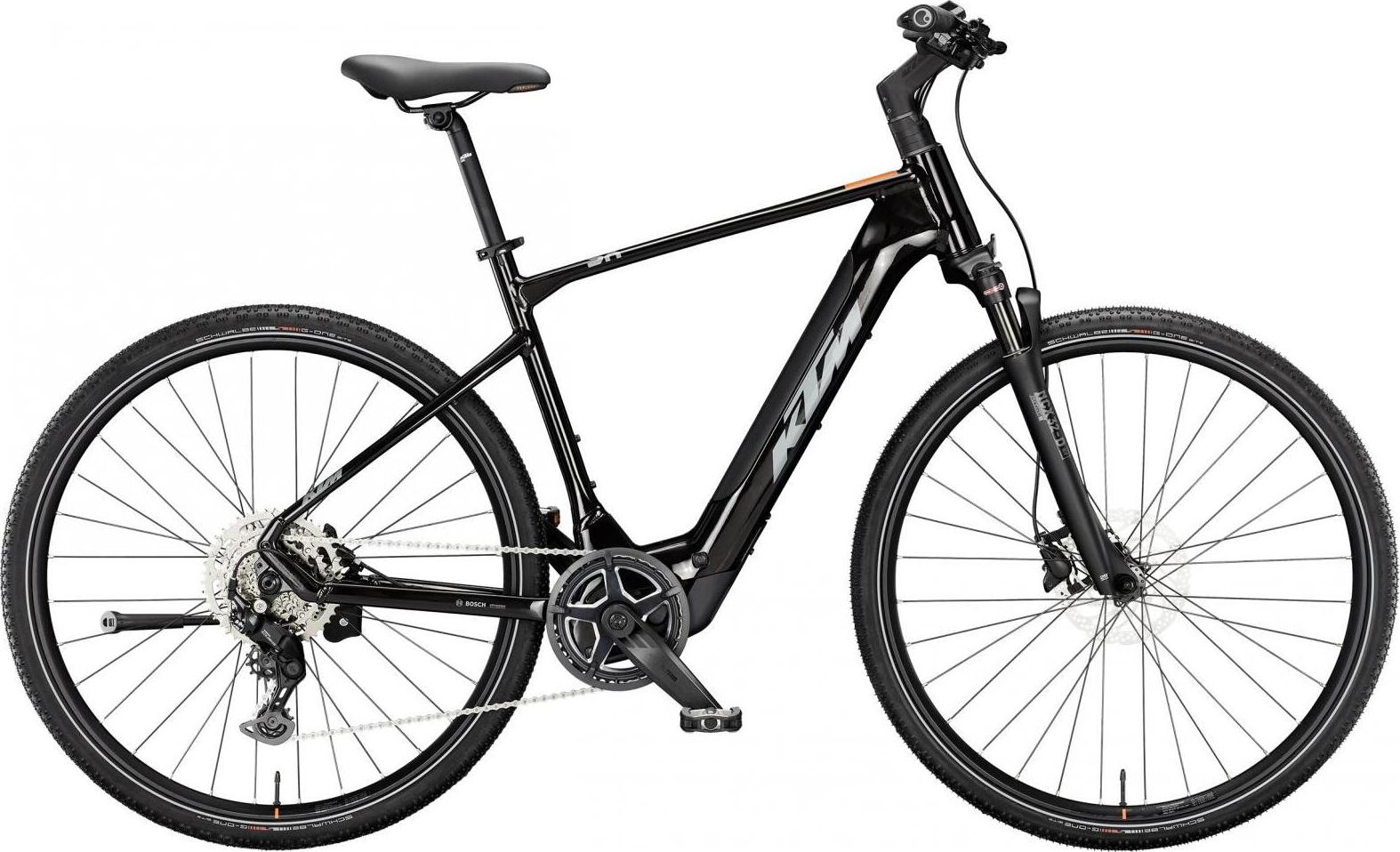

KTM Macina Cross SX 20 H

Cross ebike
3 299,00
Sorry, this product is no longer in stock
 Share
Found better price?
macina sx - KTM embarks on a new era of lightweight electric bikes

The new Macina SX product line is an addition to KTM's proven e-bike range and revolutionises the e-bike riding experience in terms of lightness and agility. With a sleek frame design and the new BOSCH Performance Line SX powertrain, the Macina SX models represent our commitment to innovation and the pursuit of new frontiers. This range combines sportiness with elegance. Macina SX also embodies the perfect balance between lightweight and impressive, natural power. These models are also consistently equipped with KTM's proprietary innovation, the POWER TUBE TOP LOADER (PTTL), for user-friendly battery handling.

The CompactPowerTube 400Wh battery can be removed from the frame at the top of the tube on all models. The easy removal and reinsertion process invites you to have a second battery with you on long hikes. For this purpose, we provide clever accessory solutions: the saddle bag "Sport Trunk Bag" and the "Battery Board" for the backpack are specially designed to store the spare battery. Another option to increase the range is the BOSCH PowerMore Range Extender with 250 Wh. It can be mounted directly on the battery cover of the KTM SX models and the position of the charging port has been specially adapted to this. In addition, an integrated lock provides protection against theft.
The lightweight e-bike concept spans across the product categories MTB Fully, MTB Hardtail, MTB Kids, Gravel,
Road, trekking onroad and trekking offroad. Thin carbon and aluminium frames are used in these models. Special emphasis has been placed on a dynamic and elegant design. Whether for the high-end sports segment or urban riding, the SX models are paving the way for a new era of electric cycling.
FrameMacina Trekking Offroad Alloy 6061, CPT400Wh Bosch BDU31 / T-4110
ForkSuntour NCX32-D Air LO 63mm
Rear derailleurShimano CUES U4000-9 display
CranksetKTM E-TEAM2 ISIS 170mm Q8, KTM aluminium 42T Direct Mount
CassetteShimano LG400-9 / 11-46T
HandlebarsKTM Comp II low rizer 640mm
WheelsKTM Line - Shimano Deore M6000 CL 32H 100-5QR Black Jack Ready25 32H 622x25TC DT Champion 2.0 black,KTM Line - Shimano Deore M6000 CL 32H 100-5QR Black Jack Ready25 32H 622x25TCDT Champion 2.0 black
Disc brakesShimano MT201 / MT200 2-Piston
ChainKMC e500 LG e-bike
MotorBosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm
Battery Bosch CompactTube 400Wh SMART SYSTEM
Front tireSchwalbe G-One Bite Evo TLE 45-622
Rear tireSchwalbe G-One Bite Evo TLE 45-622
SaddleSelle Royal Explora Gel
Motor brandBosch
