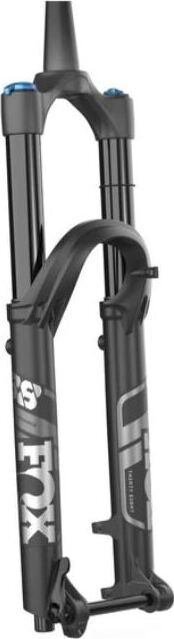

Fox 38 Float Performance 170 mm Grip 3-Position OEM

Long-Travel Enduro Specialist!

All the revolutionary features of the new FOX 36 packed into a super-strong chassis specially designed for modern, hard enduro racing with long travel: The brand new FOX 38 is on the starting line! Whatever gets in its way, it will never get tired of panting for even more speed.

Features of the FOX 38 Float Grip Performance

• FLOAT EVOL air spring for more comfort

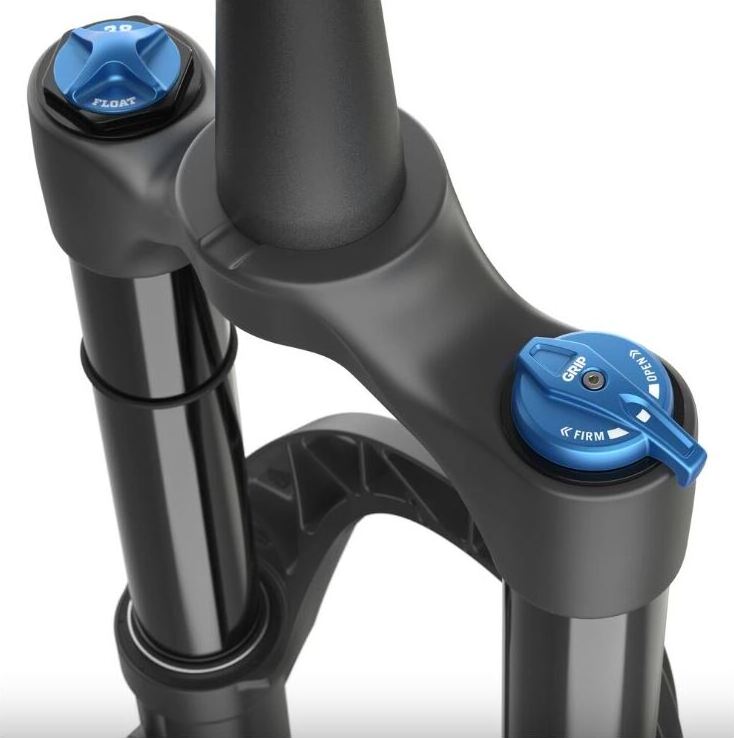

• Grip 3 Pos. damper
• Optimized chassis with optimum stiffness/weight ratio
• Reworked decors
• 185 mm long steerer

Details of the Fox 38 Float Grip Performance

Performance Series forks retain the same black anodized 7000 series aluminum upper tubes as Performance Elite, except paired with a GRIP damper. Inspired from moto, the GRIP damper uses the FIT sealed cartridge technology combined with a coil-sprung, independent floating piston. GRIP allows excess oil to purge through specially designed ports at the top of the damper to maintain consistent damping and increase durability. The damper offers three on-the-fly compression damping positions
(open, medium, firm) and a 10 click low speed rebound adjustment.

The lightweight FLOAT air spring system automatically equalizes the positive and negative air chambers for increased sensitivity and traction, regardless of the air pressure setting. Riders can fine tune the characteristics of the positive air spring using volume spacers. The shorter upper tube length raises the floor of the magnesium lower leg assembly, creating a hollow lower section and a light overall system.

The floating axle might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs. Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality.

As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. The lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.

Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every ounce of material in an effort to optimize this critical ratio. The all-new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding.

Modern frame designs and geometry trends require modern suspension design solutions. The arch is designed to pair perfectly with modern Enduro and Downhill bikes. State-of-the-art computer modeling techniques helped FOX to create an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material. The elliptical steer tube is one of many ways FOX has further optimized stiffness-to-weight, placing more material only where it is needed, and eliminating every ounce of it where it’s not.

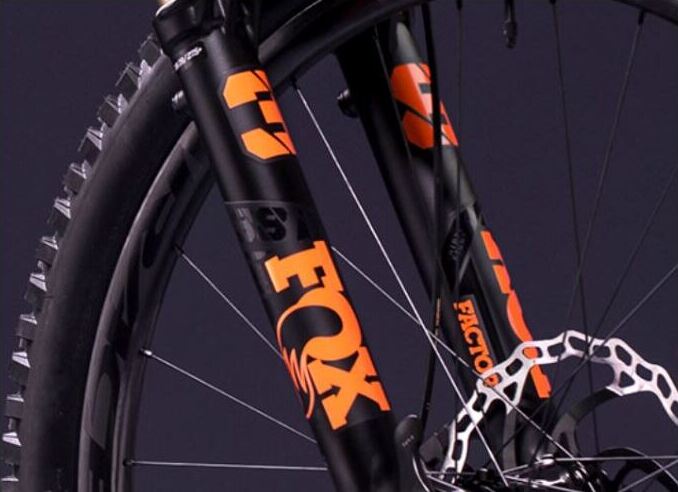

OEM product comes as a new product with warranty but not in original packaging. Fork comes in black color with orange decals
