FENIX Rechargeable bike light Fenix BC21R V3.0

The latest generation of the powerful Fenix BC21R V3.0 rechargeable bike light delivers up to 1200 lumens (ANSI) with a range of up to 142 meters. It is powered by a replaceable 18650 Li-ion battery with a capacity of 2600 mAh, which is included and charges via the USB-C connector directly in the flashlight.
The light source is a state-of-the-art Luminus SST-40 diode. Specially designed
optics creates a very wide light cone that smoothly and efficiently
illuminates the entire area in front of the bike, so that it shines even in places that
conventional bicycle lights do not cover. The design of the holder allows for quick
mounting and removal of the light on the handlebars without the use of tools, the holder
also allows for quick removal of the lamp, so it can also be used as a
high-performance handheld light. The holder can be used on all handlebars
with diameters from 22 to 32 millimetres. The Fenix BC21R V3.0 offers a total of
five digitally controlled power modes with up to 33 hours of runtime and
flashing is also included. Fenix cyc lights will provide you with
quality lighting for night workouts, regular commuting
and endurance races.

All flashlight parameters (lumen output, battery life, waterproofing and range) are measured in accordance with ANSI/NEMA FL 1-2009.

Fenix BC21R V3.0 Cycling Light Parameters

• A powerful Luminus SST-40 LED with a lifetime of 50000 hours is used.

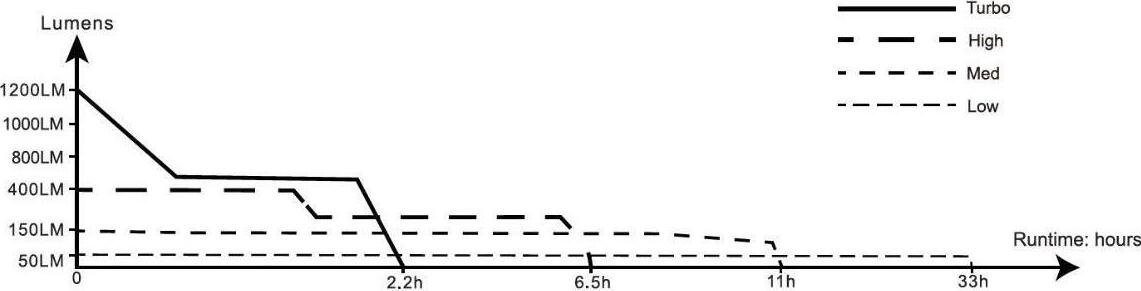

• A total of five power modes: 1200 lumens (2.2 hours*) -> 400 lumens (6.5 hours) -> 150 lumens (11 hours) -> 50 lumens (33 hours) -> flashing (pulsing between 50 and 400 lumens).
• One 18650 Li-ion battery with a capacity of 2600 mAh (included in the package) is used for power supply.
• *
  Prolonged use of the highest power may cause the flashlight to heat up and
  activation of the intelligent overheating protection function, which
  automatically reduces the power output.
• Digital power control.
• Low battery warning, overcharge protection and complete battery discharge.
• Specially shaped optics create a light cone combining wide peripheral illumination and a range of up to 142 metres (5082 cd).
• Flashlight
  attaches to the holder with a quick-release mechanism that
  allows it to be removed in a flash and reattached securely just as quickly.
• Rubberized
  construction of the holder socket ensures a firm and secure fit
  of the bike light with easy and reliable directional adjustment
  light.
• Compatible with handlebars with a diameter of 22 to 32 millimetres.
• The direction of light can be adjusted in three lateral steps in a range of approx. 30°.
• Memory for the last set power mode (except flashing mode).
• Made of aircraft hardened aluminium type A6061-T6.
• Waterproof and dustproof to IP68 standard (tested under water at a depth of 2 meters for 30 minutes).
• Shockproof against drops from a height of 1.5 meters.
• Dimensions of the light 10,8 cm x 2,9 cm x 2,7 cm.
• Light weight 157 g (including battery).
• Contents
  package: flashlight, universal handlebar mount, Fenix battery
  18650 with a capacity of 2600 mAh, USB-C cable, spare sealing ring.
• The flashlight can be purchased with a handlebar mount for a second bike, Fenix ALD-08 mount for a bike helmet or flat road aero handlebars, Fenix ALD-10 adapter for attaching the light to GoPro mounts.
• Additionally, a USB mains adapter and USB car adapter, a USB adapter supporting fast charging and a colour USB-C cable can be added to the light.

Using the bike light

There may be an insulating cap inside the lantern on the battery pack at the factory. Remove it from the battery pack before first use.

To switch on or off
hold the side button for approximately 0.5 seconds. The luminaire always switches on in
the last set mode (except flashing), the other power levels
can be switched at any time during operation by pressing the button. For
to switch to flashing mode, press the button twice quickly.

Battery capacity indication (valid
only when powered by 18650 Li-ion battery) - when the lamp is switched off
press the button once briefly to illuminate the indicator light for three seconds
LED in the button for one second. A green light or blink indicates the battery is charged to
more than 50%, red lighting or flashing indicates 50% or less. The indication LED is also lit when the torch is switched on, so the user is kept informed of the battery status while driving.

Low battery warning -
if the battery capacity falls below a safe level, the flashlight
automatically switches to lower power modes to ensure the
for the longest possible life (the lamp cannot then switch to higher power modes).
If the battery is critically low, the button will flash red.
In this case, we recommend charging the flashlight as soon as possible to avoid
the protective electronics built into the battery are switched off and therefore
the light goes out.

Intelligent overheating protection
- when the temperature exceeds 60 °C, the luminaire automatically gradually reduces
power, once the lamp has cooled down below this limit, the highest modes will be restored
available.

Charging

• Unclip the USB-C rubber cap
  connector on the bottom of the flashlight and use the included USB cable to
  plug it into a computer, power bank, USB mains adapter or USB car adapter.
• The button glows red while charging, and glows green when fully charged.
• Charging time is about 2 hours. The Li-ion battery used does not suffer from memory effect, so the flashlight can be recharged at any time.
• During charging, the flashlight can be used in an emergency, but only in two modes of 50 and 150 lumens.
• Be sure to seal the USB-C connector cover after charging and removing the power cable.

Caution

• Do not disassemble the sealed parts in the flashlight head yourself, it will violate the warranty.
• If
  the protective rubber rings appear damaged after prolonged use,
  replace them. The rings should also be lubricated to prevent erosion
  the rubber. By following these rules, the luminaire will be properly protected
  against water.
• If the lantern flickers, does not switch to higher modes, or does not light up, it may be due to one of the following reasons:
  • The battery is almost dead; charge or replace it.
  • The contacts inside the lantern are dirty - clean them with a cotton swab dipped in alcohol.
  • The battery cap is loose, tighten it.

Warranty

Five years warranty on the luminaire, two years warranty on the battery.
