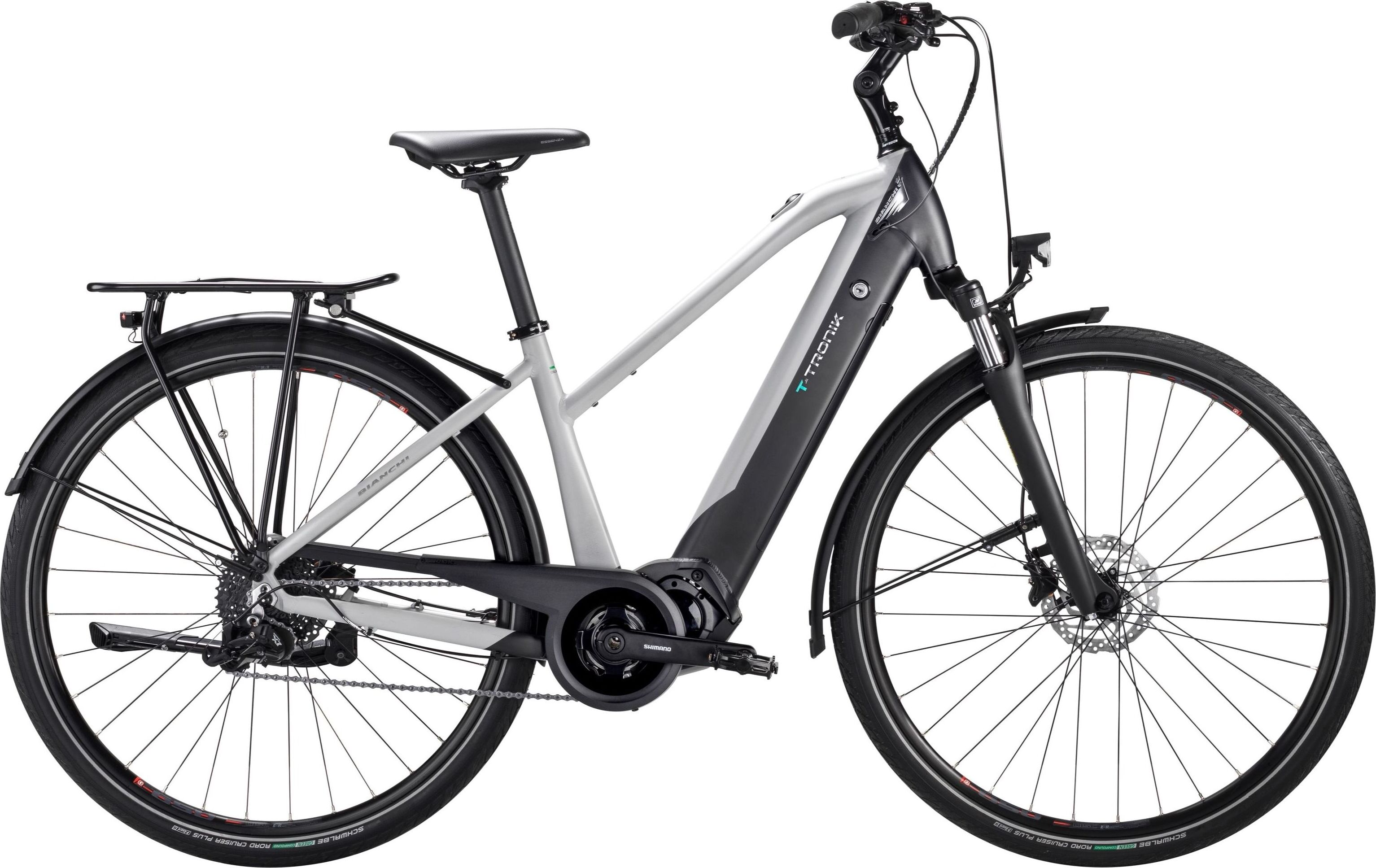

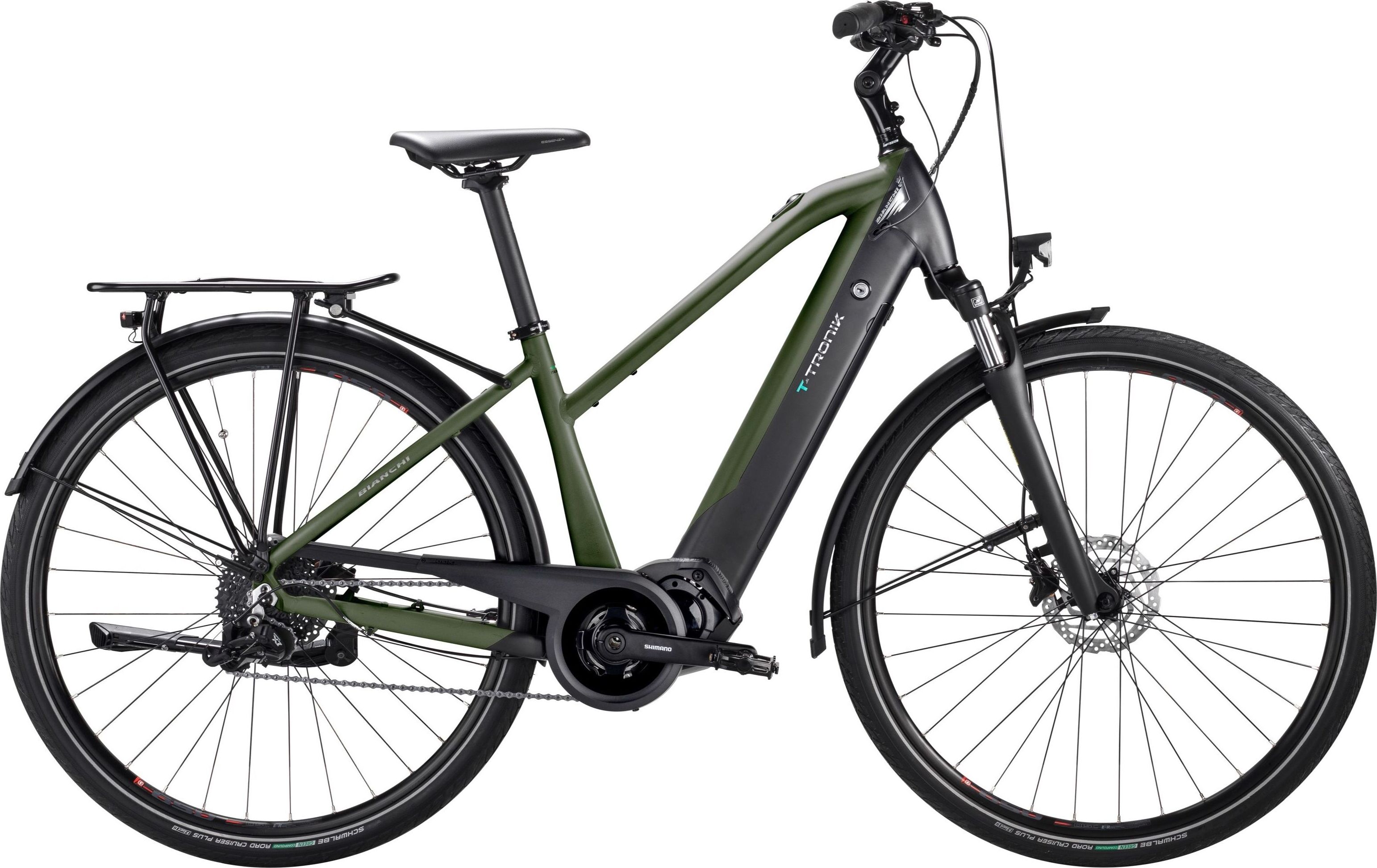

T-Tronik T Type is part of Bianchi´s new generation of pedal-assist, city-smart e-bikes. Incorporating the latest battery technology, it makes movement through cities and any weekend rides as easy as flicking a switch.
Pedalling assistance is provided by the Shimano E6100 Motor Unit, fine-tuned with a mountain bike specific setup to optimise your bike for rough and off-road riding. The 250 W motor is powered by 417 Wh battery.
A heads-up display allows you to keep track of all your important metrics, like speed, power and battery levels, and also flick through your power assist levels. Keeping track of your power outputs, from both yourself and the motor below, will help you judge your efforts based on the trail ahead, allowing you to choose when to hold back and when to send it.
All of the cables are internally routed, helping to protect them from all the kicked-up mud and grime – not to mention it also makes the bike look incredibly neat and tidy.
Be unstoppable with Bianchi's new e-MTB T-tronik Sport!
SHIMANO E6100
Central motor unit 250 W, 60 Nm
417 Wh down tube integrated custom battery
Torque, speed and cadence sensors
LCD display
THE IMAGE SHOWN IS INDICATIVE ONLY - components and graphic details may differ from the actual model.
Material | Aluminium |
Frame | T-Tronik T-Type Frame 28 Tourer Step-through, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 43/47 |
Fork | Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8 , travel 63mm, compatible with fender, OLD 100mm, Quick relase type |
Rear derailleur | Sunrace, 9sp, max 42T |
Shifters | Sram X5 1x9sp |
Crankset | Shimano FC-E6100, 170MM CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM |
Handlebars | Velomann 31.8/680mm, RISE 20MM, SWEEP 15° |
Stem | Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore |
Seatpost | Velomann, lenght 350mm, diam.31,6mm, 0mm seatback, Al2014 shaft + alloy head |
Tires | Chaoyang E-Liner City 700x45C, 60tpi |
Wheels | Velomann 29 , 23-622, 32 hole black |
Disc brakes | Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter |
Chain | KMC E9s EPT |
Mudguards | SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard |
Bottom bracket | included in the motor |
Grips | Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm |
Motor | Shimano E6100 250W, torque 60Nm |
Battery | 417Wh Phylion integrated battery |
Stand | Ursus R81 WAVE REAR, 28 - 40mm fixing plate (load 35kg) |
Headset | FSA 1.1/8 44H-N10P |
Brakes rotors | Radius Rotors RT900, 160mm, center lock |
Saddle | Selle Royal, Essenza |
Battery capacity | to 499 Wh |
Motor brand | Shimano |
Drivetrain | Other |
Number of gears | 1x9 |
Travel | 80-120 mm |
