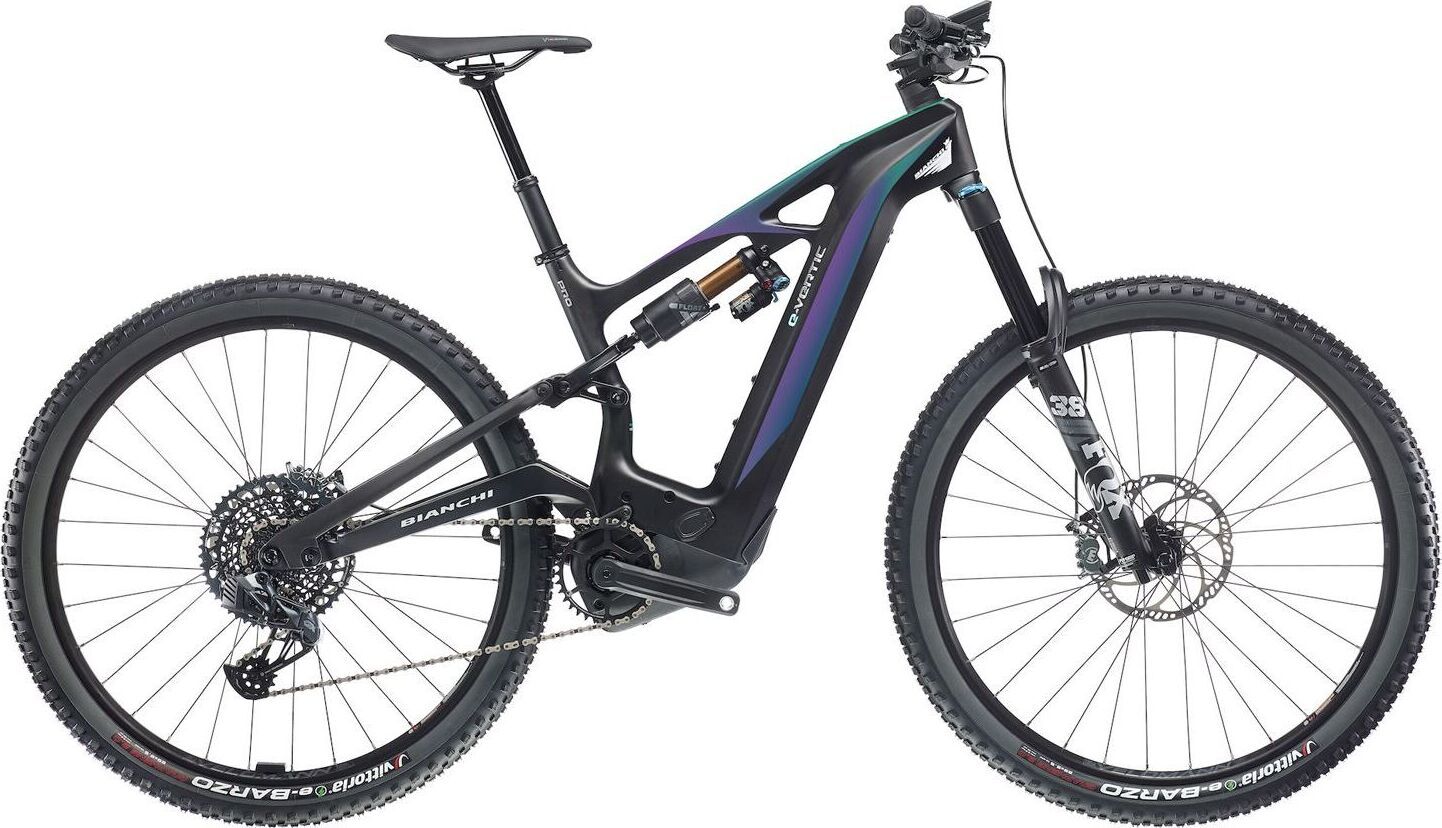

BIANCHI FX-Type Pro represents the definition of the e-Vertic model family. It sets the pace both in the menu and in the field. It's exactly what an electric mountain bike should be – fast, fun and playful.
The Bianchi E-Vertic FX-Type Pro is an enduro MTB with 160 mm travel built on a carbon frame, with which you can face all types of tracks - from easy blue to demanding black ones. So that your passion doesn't run into any limits.
Bianchi designers were based on the need to design a stiff carbon fiber frame that would cope with the maximum transmission of rider and engine power even in technical sections. From this request arose the idea of "closing" the front part of the frame triangle with another link, the design of which is inspired by the work "Creation of Adam" by Michelangelo. The result provides even greater stiffness for the best possible driving characteristics both uphill and downhill.
The varnish creates a contrast of brushed dark green color with an anthracite base. This combination allows the frame profile to stand out as much as possible.
The battery with a huge capacity of 750 Wh is placed as close as possible to the center, thanks to which the most optimal driving characteristics that you require in enduro are achieved. The harbinger of the new e-MTB era is the use of the newest Bosh CX Smart motor system with a torque of 85 Nm. With the new e-Vertic FX-Type Pro, you can travel up to 155 km on a single charge.
The geometry of the e-Vertic FX-Type Pro is truly modern - the low head angle, progressive geometry and short rear end guarantee smooth passage even in difficult terrain. The specific shape of the rear structure allows you to focus on the most ideal passage of even the most brutal sections of each trail without worrying about the rear struts of the beautiful carbon frame.
All components are designed to make the Bianchi e-Vertic FX-Type stable and playful at the same time, exactly in line with the requirements of modern enduro.
Material | Carbon |
Frame | CARBON sizes: 43-48-53 - 160mm rear travel - HT 1,5 tapered - Seatpost 31,6 mm - 12x148 mm dropouts |
Fork | Sram FS 35S TK 29F SB SA 160 EDFB FB 44 A1 |
Rear derailleur | Sram SX EAGLE 12sp |
Shifters | Sram SX EAGLE 1x12 |
Crankset | FSA Direct Mount Steel Chainring - 34T / w/HT Steel / ED / C.L. 52mm CK-320 FSA E-Bike Diecast Crankset - ISIS / 165mm / w/o crank bolt |
Handlebars | Velomann, width 780mm diam.35mm, rise 20mm, backsweep 9° |
Stem | Velomann Ursa, 50 mm, 35 mm, 1 1/8 |
Seatpost | Alpha1 Series - 31.6 mm - Remote RM07 I-Spec EV - 1800 mm cable length - Velomann logo 125 mm - for size M 150 mm - for size L/XL |
Tires | Vittoria e-Barzo 29x2.6 XC-Trail TNT |
Wheels | Velomann 2.0 29”, 30mm 29”, 489g, 32 hole drilling, Disc Only |
Disc brakes | Shimano, BL-M4100, BR-MT420, BLACK, SM-MA-F203P/PM, RESIN PAD, 800MM HOSE / 1700 HOSE |
Chain | Sram SX EAGLE, 12sp |
Bottom bracket | included in the motor |
Rear hub | Shimano, CENTER LOCK DISC(W/O LOCK RING) 12-SPEED FOR 12MM THRU TYPE AXLE, 32H OLD:148MM |
Grips | T-One Rock T-GP34 single lock grip , TPR, plastic inner body |
Motor | Bosch Performance Line CX Smart System |
Battery | Bosch Powertube 750wh integrated battery, w/Kiox display |
Headset | Acros 1 1/8 top / 1,5 bottom - bearings Starnut, Alloy Topcap |
Brakes rotors | Shimano, SM-RT30, L 203MM, W/LOCK RING, FOR RESIN PAD ONLY |
Saddle | Velomann, manganese rail, lenght 277mm x width 144mm |
Shock | Rock Shox Deluxe Select +, 230/65, DebonAir Linear, Damer Type RT, Compression Tune L1, Lockout Force 380, Shaft 25x8, external rebound adjustment, Volume reducer 0 Neg 0 Pos |
Battery capacity | over 700 Wh |
Motor brand | Bosch |
Drivetrain | Sram SX |
Number of gears | 1x12 |
Travel | 130-160 mm |
