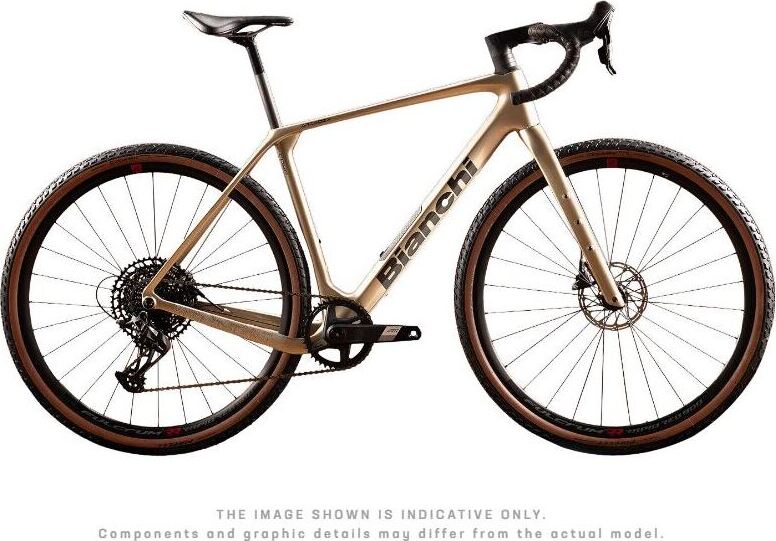

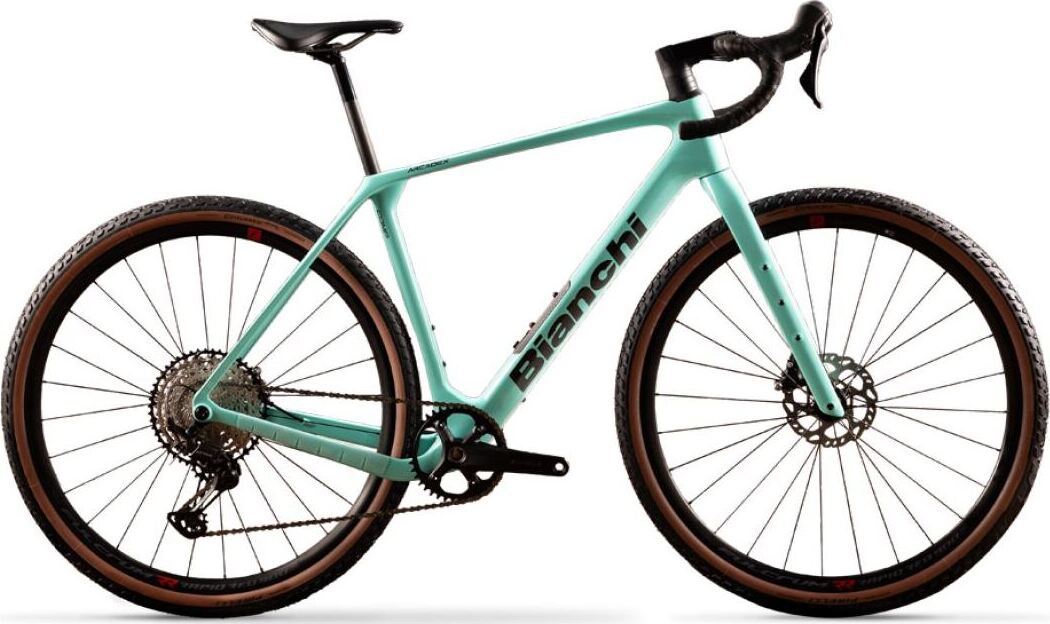

Nový Arcadex je neohrozený, robustný dobrodružný stroj, ktorý vás zavedie ďalej ako kedykoľvek predtým. Gravel bike z karbónu zosobňuje synonymum bikepackingu.
Prepracovaný rám prichádza v 5 veľkostiach s karbonovou sedlovkou. Vo verzii Comp prichádza na mechanickej sade Sram Apex
Charakteristika nového Arcadexu:
Rám | Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type |
Vidlica | Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42 mm Steer tube Diameter: 1 1/8" Material: Epoxy - SM Carbon Fiber Composite |
Prehadzovačka | Sram Apex Eagle Maximum Cassette Sprocket 52T |
Radenie | Sram Apex D1 |
Kľuky | Sram Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) |
Kazeta | Sram SX Eagle, PG-1210 11-50T Driver Body Interface: HG11 |
Riadidlá | Velomann Gravel ICR Alloy Flare: 16° | Drop: 130 mm | Reach 70 mm | Interface Diameter: 1 1/4" (31.8 mm) | HandleBar Widths: 400- SX(47) SM(51), 420-MD(55) LG(58), 440-XL(61) |
Predstavec | Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8" (28.6 mm) HB interface Diameter: 1-1/4" (31.8 mm) Stem Lengths: 80 mm-XS(47), 90 mm-SM(51), 100 mm-MD(55), 110 mm-LG(58),120 m -XL(61) |
Sedlovka | Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300 mm-SX(47), 350 mm-SM(51) MD(55), 400 mm-LG(58) XL(61) |
Plášte | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
Kolesá | Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm |
Brzdy | Sram APEX Pad Type: Steel-Backed Organic |
Reťaz | Sram SX Eagle |
Handlebar tape | Bianchi Hexagon tape 2.5 mm thickness, Full black |
Hlavové zloženie | Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal |
Brzdové kotúče | Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear) |
Bezdušový | áno |
Počet prevodov | 1x12 |
